| Format | Micro-ATX |
| Socket | 1155 |
| Chipset | Intel H61 |
| Chipset graphique | Non intégré
Port VGA |
| Processeurs supportés | Intel Core i7 / i5 / i3, Intel Pentium, Intel Celeron avec LGA1155
Cache L3 varie selon le CPU
Certains processeurs demandent une carte graphique. Visitez le site www.gigabyte.fr pour la liste des processeurs supportés. |
| Mémoire | 2 x DIMM, max. 16 Go DDR3 1333/1066/800 MHz 1.5V
Dual channel memory architecture
Support non-ECC memory modules |
| Slots d|extension | 1 x PCI-Express x16 (running at x16)
2 x PCI-Express x1
(All PCI-Express slots conform to PCI-Express 2.0 standard.) |
| Stockage | 4 x SATA (3 Gb/s) |
| LAN | Atheros GbE LAN chip (10/100/1000 Mbit/s) |
| Audio | 8 canaux
Realtek audio codec High Definition Audio 2/4/5.1/7.1-channel
To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| USB | 8 x USB 2.0/1.1 (dont 4 à l|arrière) |
| Fonctionnalités | Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune (cette fonction dépend de certains modèles)
Support for Smart 6
Support for Auto Green
Support for ON/OFF Charge
Support for Cloud OC
Support for 3TB+ Unlock
Support for Q-Share |
| Connecteurs panneau arrière | 1 x souris PS/2
1 x clavier PS/2
4 x USB 2.0/1.1
1 x D-Sub
1 x RJ-45
3 x audio jacks (Line In/Line Out/Microphone) |
| Connecteurs E/S internes | 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x parallel port header
1 x serial port header
1 x clearing CMOS jumper |
| BIOS | 2 x 32 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b |
| Dimensions | 226 x 174 mm |

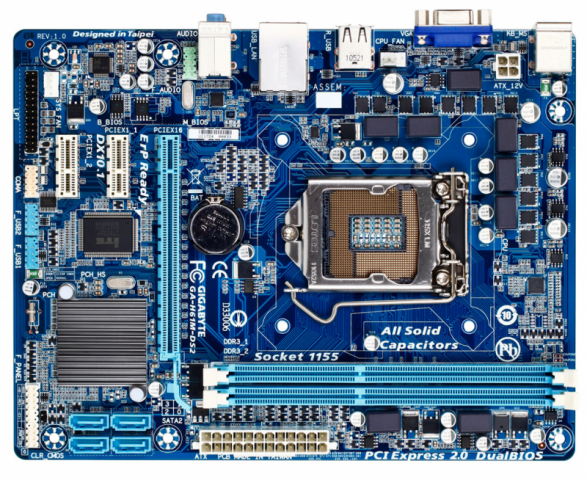

| Réf. constructeur | H61M-DS2 |
| Constructeur | Gigabyte |
| Garantie | 1ère année retour atelier Microinfo
2 années supplémentaires direct Gigabyte |
