| Format | ATX |
| Socket | AM3+ |
| Chipset | AMD 970
AMD SB950 |
| Chipset graphique | Non intégré |
| FSB | 4800 MT/s |
| Processeurs supportés | AMD AM3+ FX processeurs
AMD AM3 Phenom II / Athlon II processeurs
Visitez le site www.gigabyte.fr pour la liste des processeurs supportés. |
| Mémoire | 4 x DIMM, max. 32 Go DDR3 2000(O.C.)/1866/1600/1333/1066 MHz 1.5 V
Dual channel memory architecture |
| Slots d|extension | 1 x PCI-Express x16 slot, running at x16 (PCI-ExpressX16)
1 x PCI-Express x16 slot, running at x4 (PCI-ExpressX4)
3 x PCI-Express x1
(All PCI-Express slots conform to the PCI-Express 2.0 standard.)
2 x PCI |
| Stockage | 6 x SATA (6 Gb/s)
Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD |
| LAN | Realtek GbE LAN chip (10/100/1000 Mbit/s) |
| Audio | 8 canaux
Realtek HD audio codec High Definition Audio 2/4/5.1/7.1-channel
Support for S/PDIF Out |
| USB | 12 x USB 2.0/1.1 (dont 6 à l|arrière)
2 x USB 3.0/2.0 (à l|arrière, Etron EJ168 chip) |
| Fonctionnalités | Support for @BIOS
Support for Q-Flash
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune (dépend le modèle de carte mère)
Support for Turbo XHD
Support for Smart Recovery
Support for Auto Green
Support for ON/OFF Charge
Support for 3TB+ Unlock
Support for Q-Share |
| Connecteurs panneau arrière | 1 x clavier/souris PS/2
6 x USB 2.0/1.1
2 x USB 3.0/2.0
1 x RJ-45
3 x audio jacks (Line In/Line Out/Microphone) |
| Connecteurs E/S internes | 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
3 x USB 2.0/1.1 headers
1 x Clear CMOS jumper |
| BIOS | 2 x 32 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b |
| Dimensions | 305 x 225 mm |

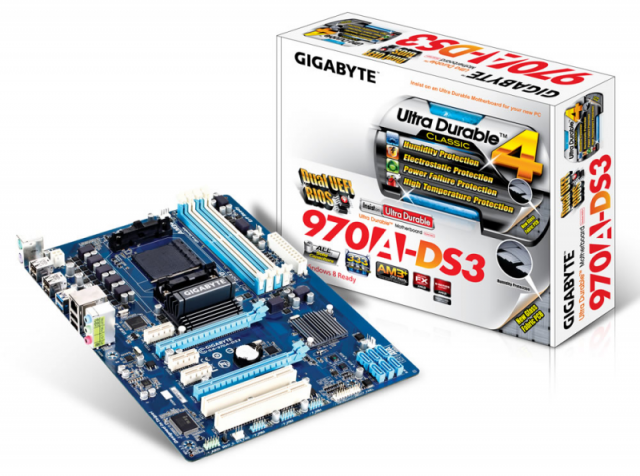

| Réf. constructeur | 970A-DS3 |
| Constructeur | Gigabyte |
| Garantie | 1ère année retour atelier Microinfo
2 années supplémentaires direct Gigabyte |
