| Format | ATX |
| Socket | 1155 |
| Chipset | Intel H77 |
| Chipset graphique | Non intégré
Port VGA
Port DVI-D (max. 1920x1200 pixels)
Le port DVDI-D ne supporte pas d|adaptateur VGA.
Port HDMI (max. 1920x1200 pixels)
Support for AMD CrossFireX technology (The PCIEX16 slot operates at up to x4 mode when AMD CrossFireX is enabled.) |
| Processeurs supportés | Intel Core i7 / i5 / i3 avec LGA1155
Cache L3 varie selon le CPU
Certains processeurs demandent une carte graphique. Visitez le site www.gigabyte.fr pour la liste des processeurs supportés. |
| Mémoire | 4 x DIMM, max. 32 Go DDR3 1600*/1333/1066 MHz 1.5 V
Dual channel memory architecture
Support non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules*
*DDR3 1600 MHz et XMP avec un CPU Intel 22nm uniquement |
| Slots d|extension | 1 x PCI-Express x16 slot, running at x16 (conforme PCI-Express 3.0 standard)
For optimum performance, if only one PCI-Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. The PCI-Express x16 slot supports up to PCI-Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.
1 x PCI-Express x16 slot, running at x4 (conforme PCI-Express 2.0 standard)
3 x PCI-Express x1 (conforme PCI-Express 2.0 standard)
2 x PCI |
| Stockage | 2 x SATA (6 Gb/s, SATA3 0/SATA3 1)
4 x SATA (3 Gb/s, SATA2 2~SATA2 5)
1 x mSATA connector
The SATA2 5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
Support for RAID 0, RAID 1, RAID 5, and RAID 10
When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected. |
| LAN | Atheros GbE LAN chip (10/100/1000 Mbit/s) |
| Audio | 8 canaux
VIA VT2021 codec High Definition Audio 2/4/5.1/7.1-channel
Support for S/PDIF Out |
| USB | 10 x USB 2.0/1.1 (dont 4 à l|arrière)
4 x USB 3.0/2.0 (dont 2 à l|arrière)
2 x USB 3.0/2.0 (à l|arrière par Etron EJ168 chips) |
| Fonctionnalités | Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for Xpress Recovery2
Support for eXtreme Hard Drive (X.H.D)
Support for Auto Green
Support for ON/OFF Charge
Support for Q-Share
Support for 3D Power
Support for LAN Optimizer (Intelligent optimization network management tool) |
| Connecteurs panneau arrière | 1 x clavier/souris PS/2
4 x USB 3.0/2.0
4 x USB 2.0/1.1
1 x D-Sub
1 x DVI-D
1 x HDMI
1 x RJ-45
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In/Mic In, Line Out) |
| Connecteurs E/S internes | 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
1 x mSATA connector
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
3 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) header |
| BIOS | 2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a |
| Dimensions | 305 x 244 mm |

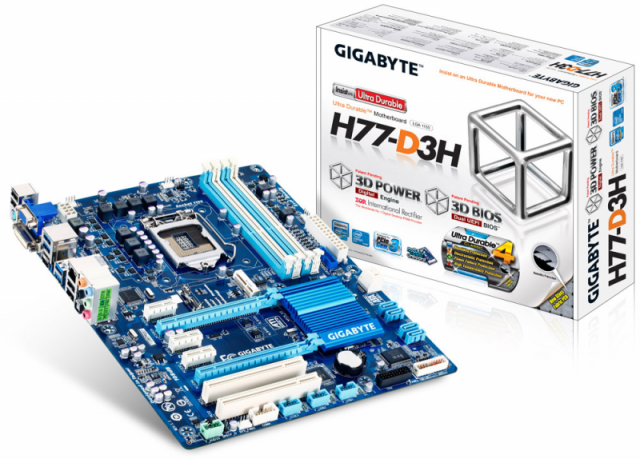

| Réf. constructeur | H77-D3H |
| Constructeur | Gigabyte |
| Garantie | 1ère année retour atelier Microinfo
2 années supplémentaires direct Gigabyte |
