| Format | ATX |
| Socket | FM1 |
| Chipset | AMD A75 |
| Chipset graphique | Non intégré
Port VGA
Port DVI-D(max. 2560 x 1600 pixels)
1 x HDMI port (max. 1920 x 1200 pixels)
Technologie Multi-cartes graphiques : Support AMD Dual Graphics technology (seulement les processeurs AMD Série A)
Support AMD CrossFireX technology |
| Processeurs supportés | AMD Série A / E2
Visitez le site www.gigabyte.fr pour la liste des processeurs supportés. |
| Mémoire | 4 x DIMM, max. 64 Go DDR3 2400(OC)/1866/1600/1333/1066 MHz 1.5V Dual channel memory architecture
Visitez le site www.gigabyte.fr pour plus d|informations. |
| Slots d|extension | 1 x PCI-Express x16, running at x16 (PCI-ExpressX16)
1 x PCI-Express x16, running at x4 (PCI-ExpressX4)
2 x PCI-Express x1
(tous les slots PCI-Express sont conformes au standard PCI-Express 2.0)
3 x PCI |
| Stockage | 5 x SATA (6 Gb/s)
1 x eSATA (6 Gb/s)
Support RAID 0, RAID 1, RAID 10 et JBOD |
| LAN | Realtek RTL8111E chip (10/100/1000 Mbit/s) |
| Audio | 8 canaux
Realtek ALC889 codec High Definition Audio 2/4/5.1/7.1-channel
Support for Dolby Home Theater
Support for S/PDIF Out |
| USB | Chipset :
10 x USB 2.0/1.1 (dont 2 à l|arrière)
4 x USB 3.0/2.0 (2 ports on the back panel, 2 ports available through the internal USB header)
Etron EJ168 chips :
2 x USB 3.0/2.0 (on the back panel) |
| Fonctionnalités | Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
Support for Smart Recovery
Support for Auto Green
Support for ON/OFF Charge
Support for 3TB+ Unlock
Support for Q-Share |
| Connecteurs panneau arrière | 1 x clavier/souris PS/2
1 x D-Sub
1 x DVI-D
1 x HDMI
1 x optical S/PDIF Out connector
2 x USB 2.0/1.1
4 x USB 3.0/2.0
1 x eSATA 6Gb/s
1 x RJ45
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone) |
| Connecteurs E/S internes | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
5 x SATA 6Gb/s connectors
1 x APU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
4 x USB 2.0/1.1 headers
1 x USB 3.0/2.0 header
1 x serial port header
1 x Trusted Platform Module (TPM) header
1 x clearing CMOS jumper |
| BIOS | 2 x 32 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b |
| Dimensions | 305 x 225 mm |

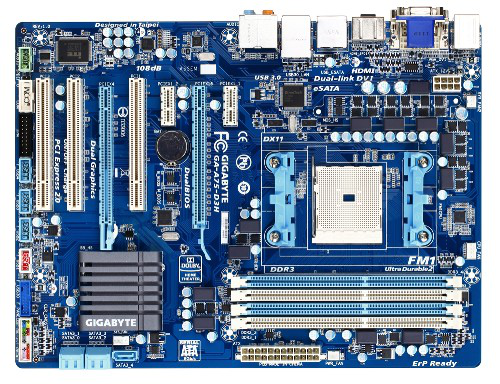

| Réf. constructeur | A75-D3H |
| Constructeur | Gigabyte |
| Garantie | 1ère année retour atelier Microinfo
2 années supplémentaires direct Gigabyte |
