| Format | ATX |
| Socket | AM3+ |
| Chipset | AMD 990FX
AMD SB950 |
| Chipset graphique | Non intégré
Technologie Multi-cartes graphiques : Support for 2-Way AMD CrossFireX and NVIDIA SLI technology (PCIEX16_1, PCIEX16_2) |
| FSB | 5200 MT/s |
| Processeurs supportés | AMD AM3+ FX processors
AMD AM3 Phenom II / Athlon II
Visitez le site www.gigabyte.fr pour la liste des processeurs supportés. |
| Mémoire | 4 x DIMM, max. 32 Go DDR3 2000(O.C.)/1866/1600/1333/1066 MHz 1.5V
Dual channel memory architecture |
| Slots d|extension | 2 x PCI-Express x16
2 x PCI-Express x4
2 x PCI-Express x1
(All PCI-Express slots conform to the PCI-Express 2.0 standard.)
1 x PCI |
| Stockage | 6 x SATA (6 Gb/s) (SATA3_0~SATA3_5)
Support RAID 0, RAID 1, RAID5, RAID 10 and JBOD
2 x Marvell 88SE9172 chips :
2 x eSATA (6 Gb/s)
Support RAID 0 and RAID 1 |
| LAN | Realtek RTL8111E chip (10/100/1000 Mbit/s) |
| Audio | 8 canaux
Realtek ALC889 codec High Definition Audio 2/4/5.1/7.1-channel
Support for Dolby Home Theater
Support for S/PDIF Out |
| USB / Firewire | South Bridge :
14 x USB 2.0/1.1 (dont 8 à l|arrière)
2 x Etron EJ168 chips :
4 x USB 3.0/2.0 (2 ports on the back panel, 2 ports available through the internal USB header)
FireWire VIA VT6308 chip :
2 x IEEE 1394a (1 port on the back panel, 1 port available through the internal IEEE 1394a header) |
| Fonctionnalités | Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune (Available functions in EasyTune may differ by motherboard model.)
Support for Easy Energy Saver
Support for Smart Recovery
Support for Auto Green
Support for ON/OFF Charge
Support for Cloud OC
Support for 3TB+ Unlock
Support for Q-Share |
| Connecteurs panneau arrière | 1 x clavier/souris PS/2
1 x optical S/PDIF Out connector
1 x IEEE 1394
8 x USB 2.0/1.1
2 x USB 3.0/2.0
2 x eSATA 6Gb/s connector
1 x RJ45
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone) |
| Connecteurs E/S internes | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
3 x USB 2.0/1.1 headers
1 x USB 3.0/2.0 header
1 x IEEE 1394a header
1 x Trusted Platform Module (TPM) header
1 x serial port header
1 x clearing CMOS jumper |
| BIOS | 2 x 32 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b |
| Dimensions | 305 x 244 mm |

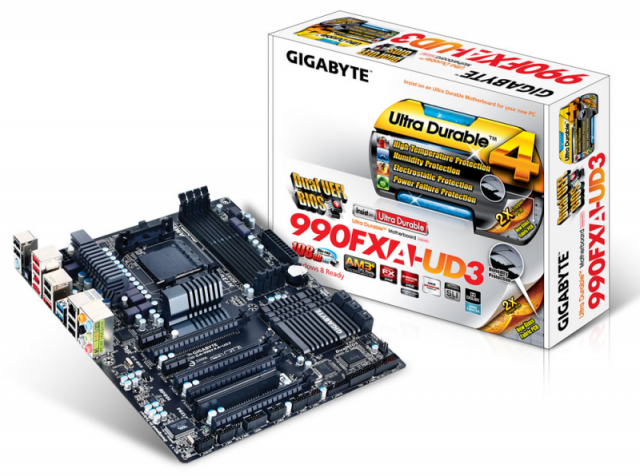

| Réf. constructeur | 990FXA-UD3 |
| Constructeur | Gigabyte |
| Garantie | 1ère année retour atelier Microinfo
2 années supplémentaires direct Gigabyte |
